PRODUCTS

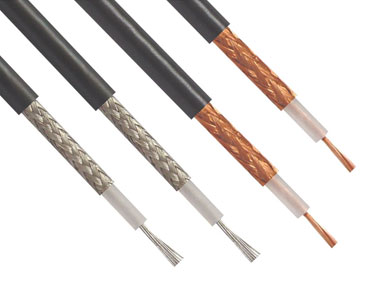

Coaxial cable is a type of copper cable specially built with a metal shield and other components engineered to block signal interference & also for transmission of high frequency signals in communication equipment and control systems.

Solid / stranded high conductivity copper Foam PE / PP insulated. Bare / Tinned / Silver plated copper wire Braided, double braided, PVC / FRPVC outer jacketed Coaxial and Ethernet Cable as per customer Requirement . The standard cables are RG-8 , RG-11 , RG-58 , RG-59 , RG-62 , RG-71 , RG-174 , RG-213 , RG-214 , RG-216 and others.

APPLICATION

  • Coaxial Cables use one cable as a wrap around shield that protects the other. Coaxial cables are highly shielded and can carry a signal for huge distances. Large office buildings use these cables to link up a large floor or multiple-floor networks.
  • The Canbus is a common digital network used in automotive, industrial, medical and scientific systems for routing sensor data between pieces of equipment. The main advantages are high resilience to noise, reliability, low cost, simple wiring and ease of use.

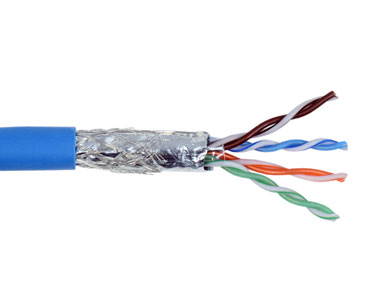

Telephone Switch Board Multicore cables with annealed electrolytic copper conductors - insulated and sheathed with PVC/PE compound twisted wires bunched together in concentric layers so as to minimize cross talk

APPLICATION

Suitable for indoor telephone wiring in multi - storey buildings, offices and factories, for switchboard wiring and private telephone exchanges, for intercoms, telecommunication equipments, telesignalling and multichannel pipe music in hotels.

Standard specification :

  • Switch Board Cables (both screened and unscreened), PCM Cables, digital cables etc.
  • As per BSNL'S TEC-G/WIR.06/03(ITD-S/WS-113C, S/SW-114B,CBL-7000, VDE:0815, 0816 /IEC:189 / IS:5608 & and derived to customers specifications.

Characteristics :

Cable suitable for conductor operating temperature 70°C, 85°C & 105°C shall be provided on request.

Special Properties :

Fire Retardant/Fire Retardant Low Smoke / Zero Halogen Low Smoke & Sheath material shall be supplied on request.

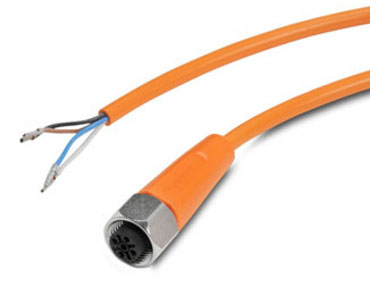

These cables are designed with stranded/Flexible copper conductor Bare / Tinned, PVC / PE insulated cores, and such cores Laid up sheathed with TPR / PVC / PE, These cable can be provided with Shielded construction. Sensor cables construction designed for optimal of signal / data transmission from sensor transducer or transmitted to a control unit.

Application :

Sensor cables are applicable and variation by industry and intended use. These cables are suitably designed for the following sensor application in marine, aerospace, Industrial, Drive, control and automation technology, Chemical, petrochemical, oil and gas industry, Automotive manufacturers and suppliers etc.

Characteristics :

Cable suitable for conductor operating temperature 70°C, 85°C & 105°C shall be provided on request.

Special Properties :

  • very high flexibility
  • oil resistant
  • flexible at low temperatures
  • very good weather resistance
  • good chemical resistance
  • extremely high winding and unwinding strength

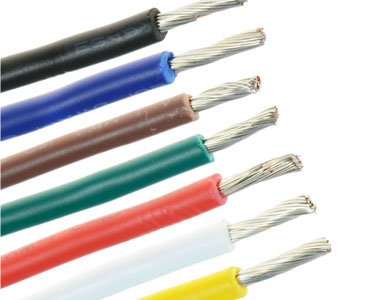

RAJASS KABEL has a credible track record with respect to Automotive wires and cables wires used for low voltage circuit in automotives, including two wheelers, four wheelers and commercial vehicles. These wires are concentric bunched copper conductors with excellent properties, including high flexibility, ROHS compliant, thermal insulation and mechanical strengths.

Low Voltage Automotive Wires AV

Standard : JASO D611

Application : These wires are used in low voltage circuit in Automobiles.

Features : connected for lighting, signals, starting, charging etc. Where the cable requires high flexibility, Thermal and mechanical strength properties.

Thin Low Voltage Automotive Wires AVS

Standard : JASO D611

Application : These wires are used for low voltage circuit in Vehicles and motor cycles. Thinner insulation than AV type ensuring equivalent performance.

Features : These wires are constructed thinner than AV wires, for light weight and smaller space.

Super Thin Low Voltage Automotive Wires AVSS

Standard : JASO D611

Application :

These wires used for low voltage circuit in vehicles and motor cycles.

Features : These wires are constructed at super thinner than AVS wires, for light weight and smaller space.

TWP : Thin-wall, Thermoplastic Insulated
GPT : General purpose, Thermoplastic Insulated

Standard : SAE J1128

Application : These wires used for Wire harness of low-tension electric circuits for automobiles.

Features : Recommended for general purpose wiring of trucks, tractors, trailers, cars, boats, buses, motorcycles and other surface vehicle motor driven equipment.

TXL: Thinn Wall,cross(x)linked Polyolefine Insulated,
GXL: General purpose,cross (X) linked Polyolefine Insulated ,
SXL: Special purpose,cross (X) linked Polyolefine Insulated

Standard : SAE J1128

Application : These wires used for Wire harness of low-tension electric circuits for automobiles especially used for circuits requiring heat resistance and cold resistance

Features : Recommended for general purpose wiring of trucks, tractors, cars, boats, buses and general service where higher durability and high heat resistance is required such as in engine compartments of vehicles. Superior to GPT because it will not melt when exposed to heat.

Thick wall thickness Insulted single core - FLY

Standard : ISO 6722 (Class A)

Application : These wires used for low voltage circuit in vehicles and motor cycles.

Features : These wires are used in Wire harness of low-tension electric circuits for automobiles

FL : Low-tension cables
R : Reduced thickness of insulation
Y : Polyvinyl chloride insulated
A : Concentric stranded conductor
B : Bunched stranding

Thin wall thickness Insulted single core -FLRY-A/B

Standard : ISO 6722 (Class B)

Application : These wires used for low voltage circuit in vehicles and motor cycles.

Features : These wires are used in Wire harness of low-tension electric circuits for automobiles.

FL : Low-tension cables
R : Reduced thickness of insulation
Y : Polyvinyl chloride insulated
A : Concentric stranded conductor
B : Bunched stranding

IS 694 : 2010 BIS APPROVED

Standard: IS 694 : 2010

Product special :

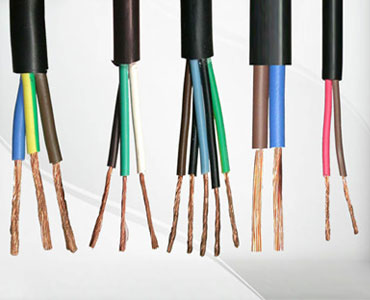

Flexible cords/ cables and multi core sheathed Flexible cords/ cables comprising of Wires' for working voltages upto and including 1100 Volts and conforming to IS:694-2010, with high conductive annealed plain copper conductors (class-5) of IS8130 >100% conductivity and >99.97% purity, and insulated with IS-5831 -

General Purpose (GP) PVC Type -D insulation & ST3 Sheathed cable with product designation "Category -1", Sizes 1 sq.mm to 4 sq. mm

Application :

  • PVC insulated for maximum rated conductor temperature 70°C & 105°C also with FR property cables suitable for Home appliance & electrical instruments.
  • FR-LSH cables are also available. These are also suitable for fire prone areas and chemical factories.
  • ROHS/Reach compliance cables available on customer requirement.

Features :

These cables are used for Home appliance such as TV, Mixer Grinder, Washing machine etc.

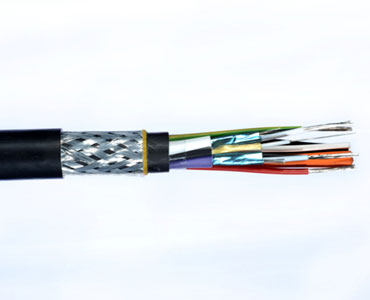

Cable copper conductors with Solid/Stranded (Annealed Tinned copper /Annealed Bare copper) Insulated with PVC/PE/XLPE to form a core such 2 or 3 cores twisted to form a pair or triad, These pairs or triad are individually screened with lapping/Aluminium taped or braided and such units are laid up collectively providing polyester tape & overall screened or braided as per customer requirement and outer jacketed with PVC/PE/XLPE.

Application :

Instrumentation cables are specially designed to transmit Signals without any external interference with minimum distortion and Superior circuit isolation in process control / PA system / computer networking / Digital control / Measuring & communication systems / Chemical plants / Refineries etc.

Standard specifications :

BS:5308, VDE 0815, IEC : 189, BIS : 5608

Characteristics :

  • Suitable for operation at 300v/500v
  • Cable suitable for conductor operation temperature : 70°C, 85°C, 105°C
  • Cable with FR/FRLS/LSZH Insulation/Sheath as per customer needs can also be provided.

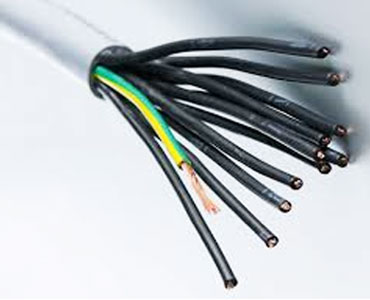

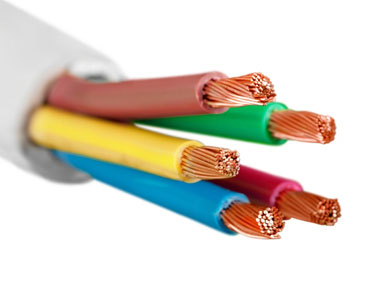

Solid / Stranded bright annealed bare electrolytic copper conductor / Tinned conductor insulated with PVC/PE/XLPE, such insulated cores laid up with concentric layers over all sheathed with PVC/PE/XLPE

Application :

Suitable for electric supplies & control circuits.

Standard Specification :

IS : 1554, BS : 6346, IEC-502, Customer specification.

Characteristics :

  • For voltage up to & including 650/1100v
  • Cable suitable for conductor operation temperature : 70°C, 85°C, 105°C
  • Suitable for flexing application
  • Fire retardant/Fire retardant low smoke/Zero halogen low smoke insulation & sheath materials shall be supplied on customer request.

IS 694 : 2010 BIS APPROVED

Standard: IS 694 : 2010

Product special :

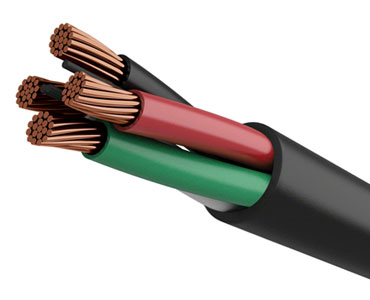

Flexible cords/ cables and multi core sheathed Flexible cords/ cables comprising of Wires' for working voltages upto and including 1100 Volts and conforming to IS:694-2010, with high conductive annealed plain copper conductors (class-5) of IS8130 >100% conductivity and >99.97% purity, and insulated with IS-5831 -

  • General Purpose (GP) PVC insulation with product designation "Category -1", Sizes 1 sq.mm to 4 sq. mm
  • Flame Retardant (FR) PVC insulation with product designation "Category -C1", Sizes 1 sq.mm to 4 sq. mm
  • Flame Retardant Low Smoke (FRLS) PVC insulation with product designation "Category C2", Sizes 1 sq.mm to 4 sq. mm (6 sq.mm and above on specific request)
  • Zero Halogen Flame Retardant (ZHFR) cables Sizes 1 sq.mm to 4 sq. mm (6 sq.mm and above on specific request)
  • General Purpose (GP) PVC insulation - RoHS complied - Environmental Friendly Sizes 1 sq.mm to 4 sq. mm

Application :

PVC insulated for maximum rated conductor temperature 70°C & with FR property cables suitable for wiring in residential and commercial infrastructure. PVC insulated for maximum rated conductor temperature HR PVC 85°C cables are suitable for wiring in residential and commercial infrastructure for a higher ambient temperature. FR-LSH cables are suitable for wiring in public places like schools, hospitals, theatres, etc. These are also suitable for fire prone areas and chemical factories Home appliances.
